How to Match Your New Lock to Your Existing Door Holes (Without Drilling)

📌 Key Takeaways

Four quick measurements separate a clean lock swap from a frustrating return and restocking fee.

• Measure Before You Browse: Check bore size, backset, and door thickness before shopping—finishes and styles come second to fit.

• Backset Is the Deal-Breaker: The distance from door edge to hole center must match the lock specs, or the latch won't line up with the strike plate.

• Standard Sizes Dominate: Most residential doors use a 2-1/8" bore hole and either 2-3/8" or 2-3/4" backset—confirming yours takes under five minutes.

• Know When to Call for Help: Non-standard holes, extra-thick doors, or switching from a deadbolt to a full handleset usually require professional drilling.

• Match Function to Security Needs: Single cylinder, double cylinder, and keyed entry locks serve different purposes—check local codes before choosing.

Right measurements = no-drill install and no restocking fees.

Homeowners facing a broken lock or planning a hardware upgrade will gain confidence knowing exactly what to measure, preparing them for the product selection guide that follows.

~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~

The deadbolt seizes up. 6:15 PM.

Dinner is on the stove, the kids need homework help, and the front door will not lock. That hollow feeling in your chest—my home is not secure—triggers a cascade of urgent decisions.

Here is where most homeowners make an expensive mistake. They open their phone, start browsing polished brass finishes and sleek modern designs, and click "Add to Cart" based on what looks right. Three days later, the new deadbolt arrives. It does not fit. The backset is wrong. Now the choice becomes drilling new holes into an expensive wood door or paying a restocking fee to return hardware that should have worked.

That frustration is entirely avoidable.

Before comparing finishes, brands, or handle shapes, verify the physical prep already in the door. A no-drill replacement only works when the new lock matches the existing bore layout, backset, and thickness range. That quick fit audit transforms a stressful lock failure into a clean, confident swap.

Start Here: Can Your Existing Door Prep Support a No-Drill Swap?

Often, yes. But only after a fit audit.

Standard residential exterior doors typically share common bore layouts and backset dimensions established by industry standards like those maintained by the Builders Hardware Manufacturers Association (BHMA). These standards, including BHMA A156.39 for residential locksets, establish performance and dimensional requirements that most quality hardware follows.

If the current lock was installed using standard door prep, there is a strong chance a quality replacement will drop right in. Premium locks, however, sometimes require specific alignments that differ from builder-grade hardware. The bore placement, the spacing between holes, or the required door thickness can vary.

Verifying compatibility takes less than five minutes with a tape measure.

The 3 Verification Checks Before Ordering

Before comparing brands or finishes, grab a tape measure and confirm these specifications:

1. Main bore size and hole layout — The large circular hole on the face of the door where the lock cylinder sits.

2. Backset — The distance from the edge of the door to the center of that bore hole.

3. Door thickness — How thick the door slab measures, edge to edge.

Get these four measurements right, and roughly 90% of compatibility problems disappear. Miss any one of them, and the hardware either will not physically fit or will require drilling to install.

Step 1: Confirm the Main Bore and Existing Hole Layout

Start by examining the face of the door where the current lock sits.

The main bore is the large circular hole holding the lock cylinder. On most standard residential doors, this bore measures 2-1/8 inches in diameter. A smaller hole on the edge accommodates the latch and bolt mechanism. This configuration aligns with BHMA A156.115W standards for hardware preparation in wood doors.

Place a tape measure across the circular opening. Note whether additional holes exist below the main bore—some handlesets require mounting hardware in specific positions. Also look for signs of previous modifications; if past locks required aftermarket adjustments, the door prep may no longer be standard.

Many quality deadbolts and handlesets from brands like Emtek or Baldwin use standard door prep. Product specifications often state "2-1/8 in. bore standard door prep"—indicating compatibility with common residential configurations. These specifications are product-specific, so always confirm measurements match the exact product being considered.

Step 2: Measure the Backset From the Door Edge to the Center of the Hole

This single measurement is the fastest mismatch detector.

The backset is the distance from the edge of the door to the center of the bore hole. According to Express Hardware Direct's FAQ guidance, measure from the edge of the door to the middle of the lock—that distance is the backset.

Standard residential backsets are either 2-3/8 inches or 2-3/4 inches. Most quality door hardware offers both options. When shopping, product descriptions typically state "Standard latch is for 2-3/8 in. backset. Specify 2-3/4 in. backset if required."

Ordering the wrong backset is among the most common mistakes. The lock will physically fit the bore hole, but the latch will not align with the strike plate on the door frame—resulting in a door that will not properly latch or lock.

Measure twice. It takes thirty seconds.

Step 3: Check Door Thickness, Function, and Handing

Three more details to confirm before finalizing an order:

Door Thickness

Most standard door hardware accommodates thickness between 1-3/8" and 1-3/4". Exterior entry doors are almost universally 1-3/4" thick, while interior doors are 1-3/8" thick. Heavy custom doors may reach up to 2-1/4" and require thick door extension kits.

Function Type

For front entry door replacements, these function types are most relevant:

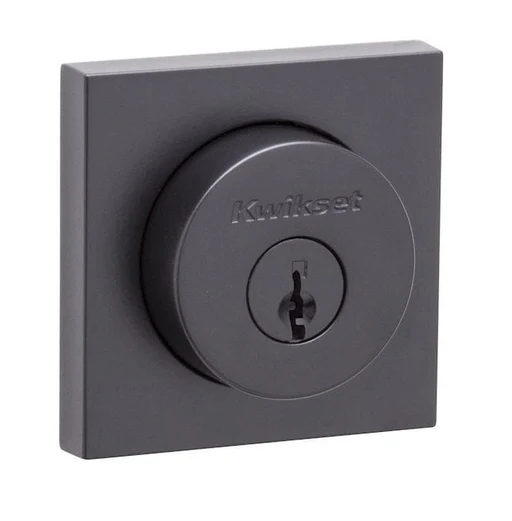

• Single Cylinder Deadbolt — Key outside, thumb turn inside. The most common choice.

• Double Cylinder Deadbolt — Key required on both sides. Extra security, but requires a key to exit.

• Keyed Entry — Levers that lock/unlock with a key outside and push button inside.

Match the function to the security need. Note that some jurisdictions have codes regarding double cylinder deadbolts due to egress requirements—check local building codes before selecting this option.

Handing

Stand outside the door, facing it. Hinges on the left means left-handed; hinges on the right means right-handed. Some locks require specifying handing at purchase. Deadbolts typically do not, but levers and handlesets often do.

How to Choose a Lock That Drops Into the Existing Holes

With measurements confirmed, selecting compatible hardware becomes straightforward.

Look for products with clearly stated door-prep specifications. The product page should list bore size, backset options, and compatible door thickness ranges. Adjustable latches offer additional flexibility—these can be set to either 2-3/8" or 2-3/4" backset.

Quality brands like Baldwin, Emtek, and Kwikset clearly list these specifications on their product pages. Cross-referencing measurements against product specs avoids the hassle of returns—Express Hardware Direct's return policy notes that a 25% restocking fee applies to non-defective returns.

Express Hardware Direct maintains an A+ rating with the Better Business Bureau, reflecting their commitment to customer satisfaction throughout the selection and ordering process.

Once fit is verified, confidently explore finishes—polished brass, satin nickel, oil-rubbed bronze. The style choices open up only after the practical foundation is solid.

When a No-Drill Replacement Is Not the Right Call

Sometimes forcing a no-drill solution creates more problems than it solves. Consider professional assistance if:

The bore pattern is non-standard. Older doors or custom installations may have different hole layouts.

The door is significantly thicker than 1-3/4". Very thick slabs may not accommodate all hardware without modification.

Previous modifications created irregular holes. If a past installer enlarged or repositioned holes, standard replacement hardware may not align.

The hardware format is changing entirely. Going from a single deadbolt to a full handleset typically requires new holes.

In these situations, reach out before ordering. Contact Express Hardware Direct at 800-458-1516 (Monday through Friday, 8 AM to 5 PM Central) or via email at info@expresshardwaredirect.com.

No-Drill Verification Checklist

Before adding anything to the cart, confirm these measurements match product specifications:

☐ Main Bore Size Measure across the large circular hole on the door face. Standard is 2-1/8".

☐ Backset Measure from the door edge to the center of the bore hole. Standard is 2-3/8" or 2-3/4".

☐ Door Thickness Measure the door slab edge to edge. Standard range is 1-3/8" to 1-3/4".

☐ Edge Bore & Latch Faceplate Verify a standard 1" edge bore and check whether the existing latch uses a round drive-in collar or a mortised rectangular plate.

Then confirm:

☐ Function type matches security needs

☐ Handing is correct if required by the product

☐ Product specifications confirm compatibility with verified measurements

The fix does not have to be complicated. Measure the door prep, match it to the right hardware, and within about 15 minutes of the new lock arriving, hear that solid, satisfying click of security restored.

Ready to find hardware that fits the existing door prep? Explore deadbolts, handlesets, smart locks, or explore our guides at Express Hardware Direct.

Disclaimer: This article provides general guidance for informational purposes only. Door configurations vary, and some installations may require professional assistance. Building codes, fire codes, and accessibility requirements (such as ADA compliance) differ by jurisdiction—always check local codes before selecting hardware, particularly for double cylinder deadbolts or commercial applications. Product specifications referenced are examples and may vary; verify exact specifications on individual product pages before purchasing.
